Heading for a doughnut economy: A brief encounter

Next months, my posts deal with the prospects of bringing humane cities closer. These posts represent the most important findings of my e-book Humane cities. Always humane. Smart if helpful, updates and supplements included. The English version of this book can be downloaded for free here and the Dutch version here.

The model for a doughnut economy has been developed by the British economist Kate Raworth in a report for Oxfamentitled A Safe and Just Space for Humanity and the idea quickly spread throughout the world. The essence is that social and environmental sustainability must be guiding principles for economic policy in the 21th century and together direct economic behavior. There is no triple bottom-line: Social and environmental sustainability are in the lead, economy follows.

The idea behind the doughnut-model is simple. if you only look at the shape of a doughnut, you see two circles. A small circle in the middle and a large circle on the outside. The smallest circle represents the minimal social objectives (basic-needs) that apply to each country. The large circle represents the self-sustaining capacity of the planet. All societies must develop policies that stay between the two lines. Where economic behavior nowadays has far reaching consequences that go beyond both lines, future economic policy must aim to make societies thrive between the lines.

Prosperity within limits

The actions below mirror policy actions to prevent overshooting the ecological ceiling and to comply with the social basement, albeit adapted to the capabilities of developed countries. The time horizon is 25 years. Below I give a few examples.

Prevention of overshooting the ecological ceiling:

Reduction to zero of greenhouse gas emissions by the combined use of solar, wind and thermal energy. Hydrogen, salt, batteries, and warm water reservoirs are used for storage.
Local plants are clean; toxic or otherwise dangerous emissions are prevented or temporarily sequestered in order to maintain clean air.
Support of local farmers to restructure their operations in order to regenerate soils, increase biodiversity and contribute significantly to the local food supply. The selling of their products is boosted by substantial tax advantages for certificated products.
Reduction of car use by reconstructing cities in order to limit displacements.
Realizing full-circularity; the import of raw materials is stalled, with the (temporal) exception of indispensable components of batteries.
The use of nitrogen is limited until an acceptable level of emissions in the air or in the groundwater is reached.
Construction of reservoirs for drinking water and water for agricultural applications to balance water extraction and supply of water.

Complying with the social basement

Rebalancing material rewards and job satisfaction, for instance by substantial reduction of income inequality.
Compulsory education from 2 – 18, in combination with internships in companies and institutions.
Tax benefits for B-certified companies (companies for which societal interest are leading).
Local government, companies and institutions work together to offer all adults engaging and challenging jobs with salaries that enable a decent and independent life.
Prices of (imported) products that damage health or the environment (or both) are listed and substantially taxed.
The cost of health care and assurance depends on obtaining certificates for a healthy life and preventing lifestyle related illnesses such as being overweight.
Citizens can vote directly in matters related to their immediate living environment.
Decent housing for all adults, and adequate housing for students, situated in an attractive and safe living environment.

A global oriented-mindset

A future of responsible prosperity requires a new mindset, including the meaning of the concept of prosperity itself. Zero greenhouse gas emissions do not only require exchanging carbon energy sources by wind, sun and earth, but also new consumption pattern. Meat becomes a delicacy, to be consumed accordingly. Circular production requires a more efficient use of goods, higher prices, superior quality, the repair of broken devises instead of their replacement, and a less fashion-dependent design. With respect to the traditional yardstick of prosperity, a stable GDP, rather than a growing one is probably the highest conceivable goal, if it should be a goal at all. Wages below modal will rise considerably, wages above modal will decrease, the highest 10% in particular.

If we consider the world as a whole, the policy implications are even more dramatic. A considerable part of the world population still lives below the social basement. The population of these countries is growing fast and concentrates in cities characterized by heavy pollution, traffic jams, dirty industries, poor housing, sanitation and water supply and increasing insecurity and inequality.

In these countries, growth of GDP, the production of goods and services, and the domestic markets as well are necessary for at least one decade. In combination with policies to control population growth and pollution, to use renewable resources and to improve the infrastructure; public transportation, water supply, housing and sanitation in the first place.

Where governments in developed countries can focus on a transition from traditional growth towards sustainable prosperity immediately, developing countries must simultaneously manage a decade of ‘traditional’ economic growth and a transition to sustainable prosperity.

October 30, 2020October 29, 2020

The social origin of global warming

Next months, these posts deal with the challenges of Earthlings and also with the prospects of bringing humane cities closer. These posts represent the most important findings of my e-book Cities of the future. Always humane. Smart if helpful, updates and supplements included. The English version of this book can be downloaded for free here and the Dutch version here.

Climate Change | National Geographic Society

As the map below shows, poorer countries have already suffered more from global warming because they are located in the warmest parts of the world, like Africa, South Asia, and Central America. It also applies to the southern and poorest part of the US.

Country-level economic impact of global warming – Image National Academy of Sciences

There is another reality to face. Not only the poorest countries will suffer most from climate change, they hardly can be blamed for it. A recent Oxfam report Extreme carbon inequality shows that the poorest half of the world population – around 3.5 billion people – is responsible for only 10% of total global emissions from individual consumption. About 50% of the emissions come from the richest 10% of people around the world. They have an average carbon footprint that is 11 times as high as that of the poorest half, and 60 times as high as that the poorest 10%. Even a 50% reduction in consumption by the top 10% and a doubling of consumption by the lower 50% would result in a worldwide decrease of consumption of about 15%^[1]. Within all countries, the production of greenhouse gasses varies with income.

/var/folders/5q/w0jt8kbx5vnc_mp7b36p_x480000gp/T/com.microsoft.Word/WebArchiveCopyPasteTempFiles/p6164 — Per capita consumption-related emissions in G20 countries

The graph shows that the concept of rich versus poor countries is partly misleading. A small part of the population of all countries has affluent and still-growing opportunity to consume and to contribute to the production of greenhouse gasses; the majority of the population stays far behind.

This national elites with its numerous connections with international business and politics have prevented adequate social and environmental policies for more than half a century, including the only measures that could have prevented global warming, namely the internalization of external costs^[2] and in particular carbon tax^[3]. The result: the economic prospects of the majority of the global population stay behind and moreover it will suffer most from global warming.

^[1] https://www-cdn.oxfam.org/s3fs-public/file_attachments/mb-extreme-carbon-inequality-021215-en.pdf

^[2] https://medium.com/@aimunm83/want-to-solve-climate-change-solve-the-economy-ce516e31d361

^[3] https://medium.com/the-sensible-soapbox/british-columbias-carbon-tax-is-working-3ea81114be5a

October 14, 2020October 13, 2020

Cities are unhealthy places but poverty makes it worse.

Next months, these posts deal with the challenges of urban life but also with the prospects of bringing humane cities closer. These posts represent the most important findings of my e-book Humane cities. Always humane. Smart if helpful, updates and supplementary reading included. The English version of this book can be downloaded for free here and the Dutch version here.

*Polluted air: Photo by Holger Link on Unsplash*

During the last decades, health has improved significantly. Globally, between 1990 and 2015, the worldwide mortality rate of children below the age of 5 dropped from 90 deaths per 1,000 live births to 43. But this is an average and hiding large differences between countries and within countries as the graph below illustrates^[1].

Under 5-year child mortality rate – Source: The Urban Disadvantage, 2015.

The global decrease in child mortality resulted from successfully combatting infectious diseases, better medical care, more breastfeeding, measles vaccination, vitamin A supplementation, and the use of impregnated mosquito nets. At the same time, the AIDS epidemic threatened to reverse the progress made, in particular in eastern and southern Africa^[2]. Moreover, in developing countries in particular, improvements in health of the poorest groups were not accompanied by improvement of income, job opportunities and living conditions, which resulted in a huge and persistent increase in family size, making the poverty even worse.

The poverty of the rural population in developing and emerging countries triggered an unprecedented urbanization. Unfortunately, cities appeared to be unhealthy places, in particular migrants and other poor inhabitants. Infectious diseases are still widespread. In developing countries, they are associated with the lack of sanitation and drinking water. The presence of mosquitos is a lasting danger. Polluted air is threatening health in each city. According to the Global Burden of Diseases Study of the World Health Organization, 4.2 million deaths worldwide every year are caused by particulate pollution^[3].

India

Take India for example. Air pollution is the direct cause of 627.000 deaths annually. Moreover, an official study of 1,405 cities reveals that only 50% of urban areas have water supply connections and that water is supplied on an average for only three hours a day. Waste disposal and sewage treatment plants are missing in most Indian cities: 30% of the households have no toilets, the coverage of the sewage network is merely 12% while the treatment of sewage is even lower at 3%. Most of the untreated sewage is discharged into rivers, ponds or lakes, which are also the main source of potable water^[4].

In the past, cities in emerging and now developed countries where extremely unhealthy places too, characterized by frequent outbreaks of epidemics that regularly killed large sections of the population. Yet, living conditions, including sanitation and availability of clean drinking water and medical care have improved. Growing prosperity and deliberate policies were accompanies by decreasing family size. The air has become cleaner but air pollution continues to be a major problem. Still, large wealth related differences in health persist.

Asthma

Many chronic diseases in emerging and developed countries are associated with air quality. More than 26 million people in the U.S. have asthma, and therefore difficulties with breathing. African-American residents die three times more from asthma than whites. They often live in segregated communities with poor housing, near heavy industry, transportation centers and other sources of air pollution^[5]. The concentration of particulate matter near main road arteries is irresponsibly high, especially on warm, windless days.

Amsterdam

In Amsterdam too, the level of pollution from particulate matter and nitrogen dioxide (NO2) exceeded the standards of the World Health Organization (WHO). As a consequence, the life of an average citizen is shortened with one year^{^[6]}. Moreover, 4.5% of the loss of healthy years is the result of exposure to polluted air too. To put this outcome in context: The percentage is less than the damage to public health caused by smoking (13.1%) and overweight (5.0%), but more than the damage caused by lack of movement (3.5%) and excess drinking (2.8%)^[7].

Lifestyle-related health problems

At the same time, growing prosperity of city-dwellers comes with lifestyle related health problems, the abuse of alcohol and drugs included, like heart problems, cancer, obese and stress. Their solution requires major changes in the design of cities and the behaviour of citizens, and include the provision of parks and other green spaces, making cities more walkable, a general reduction of cars, the transition to electric vehicles, and changing food and moving habits.

As a consequence, improving health implies improving the availability and affordability of care and fighting poverty as well. Many diseases are directly related to living conditions, which in turn are related to wealth. A billion city dwellers worldwide live in slums, on sidewalks or below bridges. Nearly all of them lack drinking water and sanitation.

Therefore, a humane city will focus on providing adequate care and for all its citizens, accompanied by healthy living conditions, shelter, work and income.

^[1] https://www.savethechildren.org/content/dam/usa/reports/advocacy/sowm/sowm-2015.pdf

^[2] https://data.unicef.org/resources/levels-trends-child-mortality-2017/

^[3] http://ghdx.healthdata.org/gbd-2016

^[4] http://www.thehindu.com/opinion/columns/smart-cities-dont-make-me-laugh/article19897715.ece

^[5] https://nextcity.org/features/view/why-racial-disparities-in-asthma-are-an-urban-planning-issue

^[6] https://www.infomil.nl/onderwerpen/lucht-water/luchtkwaliteit/regelgeving/wet-milieubeheer/beoordelen/grenswaarden/

^[7] https://www.parool.nl/nieuws/verwachte-verbetering-blijft-uit-lucht-in-de-stad-nog-net-zo-vies~bea8f836/

April 3, 2019

The holy grail: Full transparent window and solar panel at the same time

Buildings account for 40% of the global energy use. As a consequence, the mass realisation of net zero-energy buildings (NZEBs) is top priority for urban developers. therefore the integration of photovoltaics (BIPV) in the billions of windows is a top challenge that seems to be realized.

Promising steps

At first sight, harvesting energy from sunlight and maintaining full-transparency seem incompatible. Photovoltaics use ambient light at the same frequencies the human eye can see, and efforts to increase the efficiency of sun panels are at odds with maintaining transparency.

The past 10 years researchers at MIT, UCLA, Michigan State University and several other institutions – Delft Technical University among them – have made progress in bridging both objectives^[1].

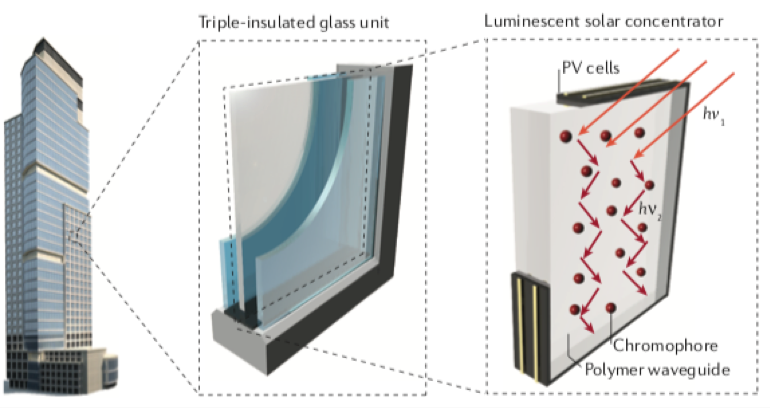

Until to date Luminescent Solar Concentratorsare the most promising technology to combine harvesting electricity and transparency^[2].

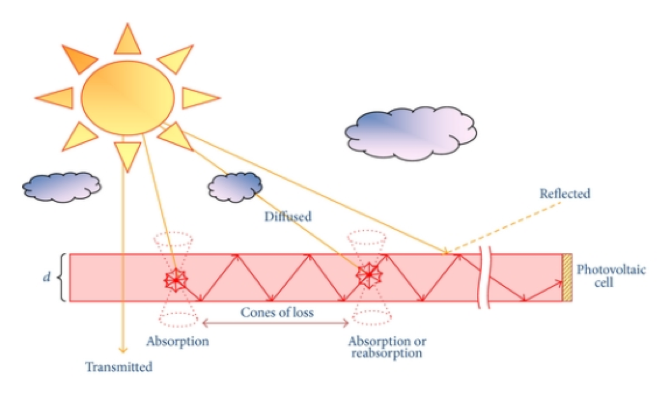

Luminescent solar concentrators catch both diffused and direct solar radiation. The light penetrates a so-called waveguide, a polymeric or glassy optical plate or thin film coated with luminescent materials. Within the waveguide the light is moving sideways. It is absorbed and turned into electricity by narrow strips of photovoltaic cells, which are either sporadically embedded in the plate or placed at the plate’s ends.

The efficiency of the process depends largely from the chromophores, the particles in the luminescent coating that have to catch as much light as possible. At the same time, these particles need to change the wavelength of the light in order to prevent other particles absorbing the light again on its way to the photovoltaic cells in the periphery of the window. For the time being, the effectiveness of this process is at the expense of the transparency of the window. With other words, the more electricity is harvested, the less transparent the window is. Nevertheless, the results so far already are commercialized successfully^[3]. A few examples:

Onyx Solar

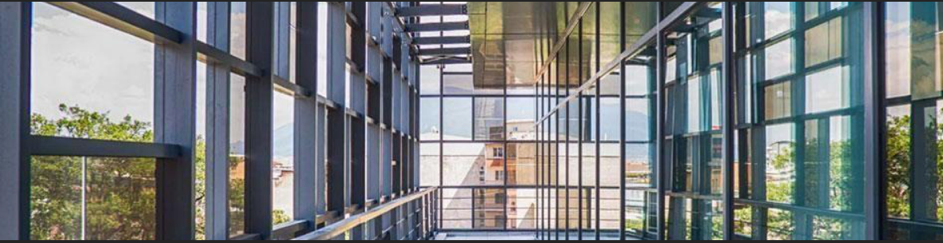

Onyx solar is a global company (Spanish by origin) that is developing and producing energy harvesting glass panes for construction and retrofitting purposes^[4]. Onyx Solar offers fully glass panels in stunning designs and in in specific colors, shapes and transparency (title picture). The company is able to trade off different degrees of transparency and color with different degrees of harvesting electricity. For instance, its most transparent panels (XL Vision) combine a transparency of 30% with a peak power of 28 watt (m²)^[5]. This is about 25% of the output of ‘regular’ thin film solar panels^[6].

Physee

Physee is a startup from Delft Technical University in the Netherlands^[7]. During the 2017 World Economic Forum, the company was called ‘technology pioneer’. Its flagship product is the Power Window, which surpasses the transparency of Onyx’s windows, but – not by surprise – has a lower electricity generating capacity: 8 – 10 watt (m²)^[8]. The company deploys thulium, a rare earth metal on the waveguide, together with a CIGS PV-cell strip attached to one glass-edge^[9]. Currently, a few companies are deploying Power Windowsto support the development of this ambitious B-company.

Is a break-through underway?

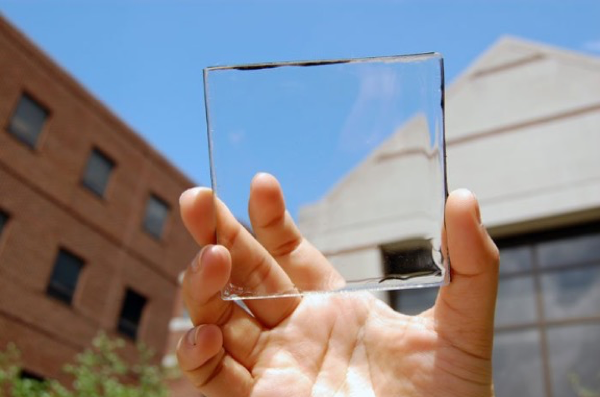

A couple of years ago, a team directed by Richard Lunt of Michigan State University, took a different approach^[10]. The principle behind it resembles that of the LSC discussed above. The concentrator also is a thin layer of material that can be placed on windows, phone screens or any flat, clear surface. Its thickness is less than 1/1,000th of a millimeter, and it is virtually indistinguishable from glass. This layer captures the photons of ultraviolet and infrared light while allowing the photons of visible light to pass through. For this reason, the result is exceptionally transparent to the human eye.

This technology is called ClearView power. The short video below is disclosing some technical details of this technology.

Ubiquitous Energy

In an effort to commercialize transparent solar technology Lunt founded the company Ubiquitous Energy^[11], which is currently in the rolling out its first windows/panels for commercial use. I couldn’t find information about the window’s electricity generating power at this time, except that the company announced that 50 watt (m²) is feasible.

Meanwhile…..

architects and urbanists might follow the example of theInternational School in Copenhagen^[12]that covered 6000 m²of its walls with green solar panels to produce more then 50% of its electricity and also to contribute significantly to the building’s aesthetic.

^[1]http://www.glasstopower.com/g2p/wp-content/uploads/2017/12/Luminescent_solar_concentrators_Brovelli.pdf

^[2]J.W.E. Wiegman, E. van der Kolk, Building integrated thin film luminescent solar concentrators: detailed efficiency characterization and light transport modelling, Solar Energy Materials & Solar Cells 103 (2012) 41-47.

^[3]https://www.business.com/articles/transparent-solar-windows-construction/

^[4]https://www.onyxsolar.com/projects

^[5]https://www.onyxsolar.com/product-services/technical-specifications

^[6]The bottom of this sector of the Onyx Solar website compares in a visual way the levels of transparancy: https://www.onyxsolar.com/product-services/amorphous-pv-glass

^[7]http://www.physee.eu/products#powerwindow

^[8]http://www.wattisduurzaam.nl/5871/energie-opwekken/zonne-energie/30-vierkante-meter-delftse-zonneramen-rabobank-eindhoven/

^[9]The applicability of thulium has been studied by Lisset Manzano Chávez, in her master theses Optimization of a Luminescent Solar Concentrator: Simulation and application in PowerWindow designat the Delft University of Technology.

^[10]The principles behind this process are disclosed in a paper titled ‘Emergence of highly transparent photovoltaics for distributed applications’, published in Nature Research (2017)

^[11]http://ubiquitous.energy

^[12]https://inhabitat.com/this-danish-school-is-completely-covered-with-over-12000-sea-green-solar-panels/

March 19, 2019March 19, 2019

Amsterdam: Heading for a circular economy

Demolition waste – Photo Jim Henderson Licensed under Creative Commons

Possibly, in 2050 the word wastecan be removed from our dictionaries. At that time, the Dutch economy will be circular according to the government. Meaning in essence, that all raw materials are reused infinitely. In order to reach this goal, an agreement with respect to the use of raw materials has been concluded between 325 parties. Its first milestone is halving the use of primary raw materials before 2030^[1].

Many are skeptical of the outcomes of this agreements. Admittedly, 38.7% of the Dutch population feels that we are on the right track, although progress is slow. Jan Jonker^[2], professor of business administration at Radboud University, is more pessimistic: We do not think circular yet. Institutions, from legal to fiscal, are fully geared to the linear economy.

Amsterdam is making progress. In 2015, the municipality explored opportunities for a circular economy, which have been published in Amsterdam Circular: Vision and roadmap for city and region^[3]. Dozens of projects have been started, albeit mostly on a small scale and starting from a learning-by-doing perspective.

The report Amsterdam circular; evaluation and action perspectives^[4](2017) is an account of the evaluation of these projects. It concludes that a circular economy is realistic. The city has also won the World Smart City Award for Circular Economy for its approach – facilitating small-scaled initiatives directed at metropolitan goals. Nevertheless, a substantial upscaling must take place in the shortest possible time.

Below, I focus on the construction sector, which includes all activities related to demolition, renovation, transformation and building. Its impact is large; buildings account for more than 50% of the total use of materials on earth, including valuable ones such as steel, copper, aluminum and zinc. In the Netherlands, 25% of CO2 emissions and 40% of the energy use comes from the built environment.

By circular construction we mean design, construction, and demolition of houses and buildings focused on high-quality use and reuse of materials and sustainability ambitions in the field of energy, water, biodiversity, and ecosystems as well. For example, the Bullitt Centerin Seattle, sometimes called the greenest commercial building in the world, is fully circular^[5]

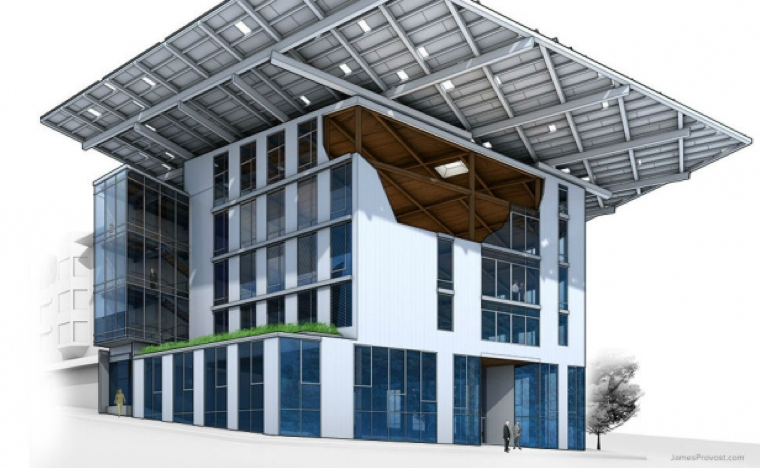

Photo: James Provost licensed under Creative Commons

The construction sector is not a forerunner in innovation, but of great importance with respect to circularity goals. The Amsterdam metropolitan region is planning to build 250,000 new homes deploying circular principles before 2050.

The evaluation of the projects that have been set up in response to the Amsterdam Circular Planhas yielded a number of insights that are important for upscaling: The most important is making circularity one of the key criteria in granting building permits. The others are the role of urban planning and the contribution of urban mining, which will be dealt with first.

The role of urban planning

Urban planning plays a crucial role in the promotion of circularity. It is mandatory that all new plans depart from circular construction; only then a 100% reuse of components after 2050 is possible. The renovation of existing houses and buildings is even more challenging than the construction of new ones. Therefore, circular targets must also apply here. Dialogue with the residents, and securing their long-term perspective is essential. The transformation of the office of Alliander in Duiven into an energy neutral and circular building is exemplary (photo below).

The contribution of urban mining

Existing buildings include countless valuable materials. The non-circular way of building in the past impedes securing these materials in a useful form during the demolition process. Deploying dedicated procedures enables the salvation of a large percentage of expensive materials. In this case we speak of urban mining. Unfortunately, at this time re-used materials are often more expensive than new ones. Therefore, a circular economy will benefit with a shift from taxes on labor to taxes on raw materials.

Issuing building permits

The municipality of Amsterdam made a leap forwards with respect to issuing building permits to enable circularity^[6]. Based on the above-mentioned definition of circular building, five themes are addressed in the assessment of new building projects: Use of materials, water, energy, ecosystems as well as resilience and adaptivity. Each of these themes can scrutinized from four angles:

The reduction of the use of materials, water and energy
The degree of reuse and the way in which reuse is guaranteed.
The sustainable production and purchase of all necessary materials.
Sensible management, for example a full registration of all components used.

Application of these angles to the five themes yields 32 criteria. A selection of these criteria is made in each project, depending from whether the issuing of building permits or renovation is concerned, and also from where the building takes place. For instance, a greenfield site versus a central location in a monumental environment.

One of the projects

In recent years, the municipality of Amsterdam has included circular criteria in four tenders: Buiksloterham, Centrumeiland, the Zuidas (all residential buildings) and Sloterdijk (retail and trade). On the Zuidas, the first circular building permit was granted in December 2017. 30% of the final judgment were based on circularity criteria.

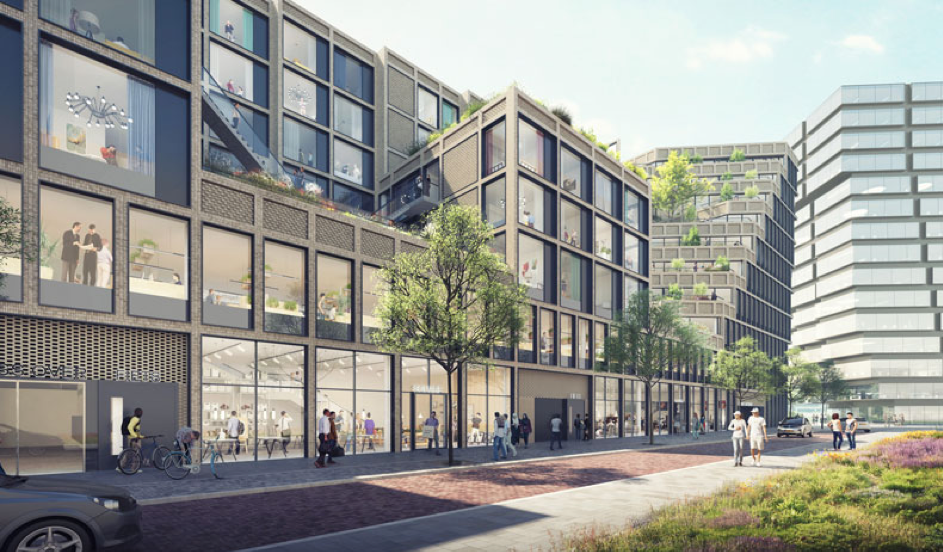

The winner is AM, in collaboration with Team V Architects. In their project Cross over, they combined more than 250 homes with offices, work space for small businesses and a place for creative start-ups. The project doesn’t have a fixed division between homes and offices. Reuse in future demolition is facilitated by a materials passport and by building with dry connections, enabling easy dismantling.

Need to organize learning

The detailed elaboration of the 32 criteria for circularity to be applied in tenders, covers more than 40 densely printed pages. One cannot expect from potential candidates to meet the requirements routinely. It would therefore be welcomed if the municipality of Amsterdam shared its knowledge with applicants collectively during the submission process.

I also would welcome ‘pre-competitive’ cooperation by communities with manufacturers, knowledge institutions, clients and construction partners with the aim to develop circular building. This involves for instance standardization of the dimensioning of components (windows, frames, floorboards) and the ‘rehabilitation’ of ‘demolished’ components while maintaining the highest possible value. This might be combined with a database in which developers can search for available components.

In Zwolle, another strategy is followed: the municipality, housing corporations and construction companies have formed a Concilium^[7], which aims to significantly expand the already planned construction of houses, using circular principles.

Circularity requires closing circles. Collaboration within the supply-chain is one of these.

^[1]https://www.rijksoverheid.nl/documenten/rapporten/2016/09/14/bijlage-1-nederland-circulair-in-20

^[2]https://www.duurzaambedrijfsleven.nl/circulaire-economie/27945/de-stand-in-het-land-zijn-we-al-een-beetje-circulair

^[3]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-0/

^[4]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-1/

^[5]http://www.bullittcenter.org

^[6]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-1/

^[7]https://www.weblogzwolle.nl/nieuws/61325/ambitieus-plan-voor-zwolse-woningmarkt.html

February 18, 2019February 18, 2019

Hydrogen: Smart but as yet a promise for the future

Hydrogen storage. Photo NASA (public domain

Recently, Amsterdam^[1]published its plan for the energy transition. The obvious conclusion is that the town, like other towns[2], need a lot of hot water for district heating from as yet unknown underground sources and a decuple supply of wind and solar energy. Looking for other supplies, the idea of hydrogen soon comes up.

Looking for other supplies of energy, the idea of hydrogen soon comes up.

Before answering the question about the feasibility of hydrogen as an additional source of heat and electricity, some characteristics of hydrogen have to be discussed.

Advantages and disadvantages of hydrogen.

The process of electrolysis brings water into contact with electricity, resulting in oxygen and hydrogen. A 100% clean process, provided the use of energy from carbon-free sources. ‘Blue’ hydrogen occurs when the CO₂released during the production of electricity is collected and stored.

The storage of hydrogen is easy, particularly if conversed into ammonia. A kilo of hydrogen is producing the same amount of energy as a fully-fledged Tesla Power Wall. A tank with 60,000 m³of ammonia can deliver more than 200 million kilowatt hours. That is the annual production of 30 wind turbines on land. The problem with hydrogen is that 60% of energetic value is lost when electricity is used to make hydrogen and hydrogen is converted it into electricity again. Storing electricity in a battery yields only 5% loss of value.

Hydrogen plant in Rotterdam (blue containers) and the apartment complex (left center
) that will be heated with hydrogen. Photo: DNV GL

As a consequence, an obvious application of hydrogen is as a substitute for natural gas, which limits energy loss to 30%.

The Dutch grid operator Stedin will use green hydrogen gas to heat an apartment complex in Rotterdam. The hydrogen will be produced locally and transported via dedicated gas pipelines^[3](photo). An electric heat pump would have reduced energy use with 75%, given perfect isolation. Exactly to avoid the expenditures for isolation, housing corporations are considering hydrogen in older houses. However, the financial advantages of ‘green’ hydrogen, in the long run, have to be seen^[4]. Eventually, heating on hydrogen will be reserved for historic city centres, where few alternatives are available.

But what if hydrogen will become much cheaper? In the near future, the Gulf States will export cheap ‘green’ hydrogen converted into ammonia on a large scale. The production costs of solar energy in desert areas are considerably lower than in Europe, because the yield of solar panels and collectors is twice as large due to the high intensity of insulation^[5]. The feasibility of this alternative depends on geopolitical considerations in the first place: Many Western countries will be reluctant to become dependent again from ‘former’ oil producing countries. However, the advantages are obvious.

Another attractive prospect is that hydrogen (ammonia) offer a new destination for a couple of brand new but already depreciated energy plants. In this respect, an experiment in the Magnum power plant at the Eemshaven is of great importance. NUON is investigating whether this type of power plants can be used in a flexible way for the production of electricity while deploying various types of low- or no-emission fuels like hydrogen. In times of a surplus of green electricity, these plants can be used to produce hydrogen. If there is a shortage of electricity, the power plant can convert imported cheap hydrogen into electricity. In the future, probably one of the gas-powered energy plants in Amsterdam will be deployed in the same way.

e-Bike on hydrogen. The Alpha 2.0. Photo Pragma Industries

An also frequently mentioned application of hydrogen is transport^[6]. In the meantime, for all forms of transport – even ^e-bikes[7]– hydrogen models are available.

With the foregoing in mind, hydrogen as fuel for passenger cars – not to speak of bikes – is quite odd^[8]. Although the range is about 600 km and refueling is fast, the difference with electric cars is reducing fast. There are few car brands left that go for passenger cars on hydrogen; Toyota is one of these. The development of a hybrid car that runs on electricity with a battery that can be charged by a fuel cell while driving is noteworthy. Daimler is working on this, after having stopped the development of a fully hydrogen-powered passenger car recently.

For other means of transport, the verdict may be more positive^[9]. The rule is, the larger the desired range and the heavier the load, the more the benefits of hydrogen equal or outweigh the advantages of batteries. Examples are buses, lorries, but also planes^[10]and ships^[11]. The province of Groningen and QBuzz, a regional transport company, are experimenting with buses on hydrogen. The 20 buses will run on the long routes. This in contrast with the rest of the fleet, which will become electric because loading can be fitted into the timetable.

The conclusion is that the use of Dutch solar or wind energy for the production of hydrogen is costly and does not qualify mostly when electricity can be used directly^[12]. The availability of cheap imported hydrogen might be a gamechanger. In the first place, it is a ‘green’ alternative for the use of natural gas particular in buildings or parts of the town where a high level of isolation is costly or infeasible at all. In the second place it is an excellent alternative for long-term energy storing probably in combination with depreciated gas-powered energy plants. Buses, trucks, trains, ships and planes might be a third application.

^[1]MRA Warmte Koude – Grand Design 2.0: Handelingsperspectief en Analyse, september 2018 Metropoolregio Amsterdam

^[2]https://www.nijmegen.nl/fileadmin/bestanden/bestuur/bestuursdossiers/Nijmegen-aardgasvrij/Warmtevisie-Nijmegen-2018-180626.pdf

^[3]https://www.stedin.net/over-stedin/pers-en-media/persberichten/eerste-huizen-verwarmd-met-waterstof-komen-in-rotterdam-rozenburg

^[4]https://www.berenschot.nl/actueel/2018/oktober/co2-neutrale-warmtenetten/

^[5]http://www.wattisduurzaam.nl/5969/energie-opwekken/zonne-energie/zonnestroom-mexico-duikt-4-dollarcent-per-kilowattuur/

^[6]https://www.duurzaambedrijfsleven.nl/energie/30369/waterstof-toepassingen

^[7]https://www.pragma-industries.com/products/light-mobility/

^[8]https://medium.com/the-future-is-electric/hydrogen-still-has-some-potential-as-a-transportation-fuel-c693e8cdf375

^[9]https://www.businessinsider.nl/zijn-waterstofautos-in-de-toekomst-onmisbaar-deskundigen-denken-van-wel-dit-is-waarom/

^[10]https://www.hydrogenics.com/2015/10/15/hydrogenics-joins-german-h2fly-consortium-to-enable-zero-emission-passenger-flights-using-fuel-cell-technology/

^[11]https://www.ship-technology.com/features/featureis-there-a-future-for-hydrogen-powered-ship-propulsion-5731545/

^[12]http://www.wattisduurzaam.nl/15443/energie-beleid/tien-peperdure-misverstanden-over-wondermiddel-waterstof/

February 4, 2019February 3, 2019

Energy storage: The missing link

Hornsdale Energy Reserve Australia – Photo TESLA

Many are convinced of the value of sustainable energy and the number of proponents continues to grow. Nor is energy storage an issue anymore. In this short essay, I discuss three different methods for storing energy^[1].

A forth solution, storage in hydrogen, will be dealt with in a next article.

Storage in batteries

For the time being, Tesla has built the largest energy storage battery in the world in South Australia with a power of 100 megawatts and a storage capacity of 129 megawatt-hours^[2]. The electricity comes from a local wind farm. The battery has immediately proven its value. In the event of a recent power outage, it restarted the supply of energy many times faster and without any problems for the users than the available gas turbines. Moreover, for a price that is 90% lower. It is very plausible that a storage system of sufficient size could have prevented the problems at Schiphol half a year ago due to a short-circuit in a Tennet cable^[3].

Vattenfall uses 500 BMW i3 batteries for its energy storage project in Wales^[4]. Their joint power is 22 megawatts and they are fed by of 76 wind turbines. They supply 13% of the electricity needs of all households in Wales annually.

The projects mentioned-above are examples of centralized storage facilities for large-scale delivery of renewable energy. The Amsterdam virtual power plant is a small-scale example^[5]. Here 50 households produce electricity with solar panels, store them in-house and trade them if the price on the energy market is the most favorable. Tesla will do the same in Australia, but with 50,000 households^[6]. The company is working on a huge virtual power plant. Each household has solar panels, with a power of 5 kilowatts and a Tesla Powerwall 2 battery with 13.5 kilowatt-hours capacity. The power of plant as a whole is 250 megawatts and its storage capacity 675 megawatt-hours.

Energy production and storage in the Netherlands will contain both large and small-scale elements. In the report Feasibility and scalability of the neighborhood battery, DNV GL investigates the contribution to the storage of energy in the Netherlands of small-scale energy storage systems, also known as neighborhood batteries^[7]. Their construction is simple and the impact on the environment is limited. The concept of the neighborhood battery is well applicable in residential areas. It enables peer-to-peer exchange and trading of electricity.

The Amsterdam Energy Arena is an example of the application of a neighborhood battery. Its storage capacity is 3 megawatts^[8]. Energy comes from 4200 solar panels on the roof of the stadium. This virtual power plant will supply power in the immediate vicinity and is also a buffer for the grid.

The grid of the Amsterdam Energy Arena – image Amsterdam Arena.

All projects that have been discussed up to now deploy Litihum (li’ion) batteries. The fast-growing demand makes lithium increasingly scarce and expensive. That is why alternatives are sought. One is the manganese-hydrogen battery^[9], another the silicon battery^[10]. The latter might have a storage capacity that is ten times larger than that of the li’ion battery. However, it will take years before both are on the market.

Heat storage in salt

The storage of heat is very simple. All you need is a block of salt of two cubic meters. This will provide enough energy to heat your home throughout the winter: Thermal solar collectors convert sunlight into heat. The heat causes a chemical reaction in the salt, resulting in its dehydration. Conversely, adding water to the dry salt releases heat.

PhD student Pim Donkers (TU / e) investigated how that process works exactly and which salt you can use best^[11]. The biggest problem was the degeneration of the salt, which gradually reduced its storage capacity.

The Dutch research institute TNO has solved this problem by influencing the properties of the salt used^[12]. The advantage is obvious; salt is cheap and widely available. TNO is collaborating with nine companies in eight European countries to develop this invention into a market-ready product within the framework of the European project CREATE. A demo house that is supplied with heat in this way will be open for the public in short notice.

For several years, Marnix ten Kortenaar has been working on the development of the sea salt battery in his company Dr. Ten^[13]. In all its simplicity, the principle is a container with dissolved sea salt and carbon electrodes. The Gridflex project is a pilot in the Dutch village of Heeten, deploying 25 salt batteries and that aims to create a local energy market^[14]. The solar energy is generated, stored, traded and consumed completely locally. For this pilot, Energy cooperative Endona was granted exemption from the Dutch Electricity Act^[15].

A third example comes from the German company EWE that intends to use salt domes for the storage of electricity^[16], based on the principle of the redox battery^[17].

The largest redox battery in the world – Image EWE

The project is called brine4power. A positive and a negatively charged electrolyte form the basis for this ‘natural’ battery, starting from the ions of ordinary salt^[18].

A test set-up is realized in containers. Their storage capacity will gradually be increased to 2500 kilowatt-hours. Next, the storage of the electrolytes in salt domes will be piloted . This trial will take place in Jemgum along the Ems, near Groningen. EWE now uses these domes for the storage of gas. In 2023 ultimately, the battery will consist of two salt domes with a volume of 100,000 m3 and a total storage capacity of 700 megawatt-hours. As far as is known yet, no harmful effects are attached to this form of sustainable energy management.

Energy storage with water

Plan Lievense 1981 – Drawing brothers Das

One of the oldest and still most common way of storing energy is pumping water to reservoirs with the help of surplus electricity. In times of energy scarcity, this water is used to generate hydro-energy. In the early 1980s, Luc Lievense designed a number of applications for this principle that could be used by the Netherlands^[19]: Artificial lakes in the Markerwaard and even in the North Sea varying in height from a few ten to hundred (!), meters.

It soon became clear that maintaining one or two conventional power plants for peak capacity was much cheaper.

Nowadays, the idea of heat storage in water or in another liquid, follows another track: Excess energy is converted into heat which is that is stored in water^[20]. The company Ecovat has developed a storage vessel (‘the ecovat ©’) in which 1500 m3 of water is stored underground for a period of 6 months with a temperature of 90 ° C and a yield of 90%.^[21]

Cross-section of an ecovat © – Figure Ecovat

The ecovat © is a double-walled vessel. Heat exchangers between the double wall provide for the extraction or addition of heat to the water in the vessel. The water that runs through the heat exchanger is heated with sustainable heat from local geothermic sources , waste heat and solar energy. The ecovat © is also equipped with control software. This ensures, among other things, that action is taken on the basis of current weather forecasts and energy prices.

A demonstration project has been realized in the Dutch village of Uden. This project has a capacity of 88,000 kilowatt-hours and can supply up to 1,000 homes with heat. Ecovat works together with Enexis, a regional grid operator in the Netherlands. Ecovat is part of a consortium called Flexible Heat and Power (FHP). This consortium is co-financed under Horizon 2020.

The reduction of the production of natural gas production in the Netherlands has increased the urgency of the question from where we will get our heat in the future. Sustainable sources like wind, sun and earth are plentiful, provided huge investment to make them available. For the purpose of storing several alternatives are available too, which enables making locally-adapted choices.

^[1]https://www.lazard.com/perspective/levelized-cost-of-energy-2017/

^[2]https://www.duurzaambedrijfsleven.nl/energie/27113/tesla-gaat-voor-grootste-virtuele-energiecentrale-bestaande-uit-50000-huishoudens

^[3]https://www.volkskrant.nl/nieuws-achtergrond/ik-weet-het-even-niet-zegt-ict-schiphol~bdcf9424/?utm_campaign=shared%20content

^[4]https://www.duurzaambedrijfsleven.nl/energie/23689/alfen-levert-mega-energie-opslag-van-bmw-batterijen-aan-nuon

^[5]https://www.expirion.nl/blog-3–burgers-bouwen-eigen-virtuele-elektriciteitscentrale.html

^[6]https://electrek.co/2018/02/04/tesla-powerwall-solar-virtual-power-plant/

^[7]https://www.dnvgl.nl/publications/haalbaarheid-en-schaalbaarheid-van-de-buurtbatterij-113722

^[8]https://www.duurzaambedrijfsleven.nl/stad-van-de-toekomst/29203/hoe-148-tweedehands-elektrische-auto-accus-de-arena-van-stroom-voorzien

^[9]https://www.duurzaambedrijfsleven.nl/energie/28415/nieuwe-batterij-voor-goedkope-opslag-hernieuwbare-energie

^[10]https://www.duurzaambedrijfsleven.nl/energie/28421/duitse-onderzoekers-ontwikkelen-silicium-accu-met-hoge-opslagcapaciteit

^[11]https://www.cursor.tue.nl/nieuws/2015/november/sluitstuk-zout-als-verwarming/

^[12]https://www.tno.nl/nl/aandachtsgebieden/bouw-infra-maritiem/roadmaps/buildings-infrastructure/energiepositieve-gebouwde-omgeving/warmtebatterij-doorbraak-opslag-duurzame-energie/

^[13]https://www.buurkracht.nl/nieuws/thuis-energie-opslaan-met-een-zeezoutbatterij

^[14]https://www.natuurenmilieuoverijssel.nl/friksbeheer/wp-content/uploads/2017/10/energievoorziening-in-de-toekomst-GridFlex-Heeten.pdf

^[15]https://www.rvo.nl/subsidies-regelingen/projecten/grid-flex-heeten

^[16]https://www.ewe.com/de/presse/pressemitteilungen/2017/06/ewe-plant-größte-batterie-der-welt-ewe-ag

^[17]https://www.deingenieur.nl/artikel/redoxbatterij-levert-buffer-boerenstroom

^[18]https://www.ewe-gasspeicher.de/home/b4p

^[19]https://www.deingenieur.nl/artikel/lievense-de-man-van-het-opslagbekken

^[20]http://www.dgem.nl/nl/andere-duurzame-energie-oplossingen/thermische-energieopslag-systemen

^[21]https://www.ecovat.eu

January 21, 2019January 21, 2019

Smart building: The long way to a circular economy

afbeelding1 — Demolition waste – Photo Jim Henderson Licensed under Creative Commons

Possibly, in 2050 the word waste can be removed from our dictionaries. At that time, the Dutch economy will be circular according to the government. Meaning in essence that all raw materials are reused infinitely. In order to reach this goal, an agreement with respect to the use of raw materials has been concluded between 325 parties. Its first milestone is halving the use of primary raw materials before 2030[1].

Many are sceptical of the outcomes of this agreement. Admittedly, 38.7% of the Dutch population feels that we are on the right track, although progress is slow. Jan Jonker[2], professor of business administration at Radboud University, is more pessimistic: We do not think circular yet. Institutions, from legal to fiscal, are fully geared to the linear economy.

Amsterdam is making progress. In 2015, the municipality explored opportunities for a circular economy, which have been published in Amsterdam Circular: Vision and roadmap for city and region[3]. Dozens of projects have been started, albeit mostly on a small scale and starting from a learning-by-doing perspective.

The report Amsterdam circular; evaluation and action perspectives[4](2017) is an account of the evaluation of these projects. It concludes that a circular economy is realistic. The city has also won the World Smart City Award for Circular Economy for its approach – facilitating small-scaled initiatives directed at metropolitan goals. Nevertheless, a substantial upscaling must take place in the shortest possible time.

By circular construction, we mean design, construction, and demolition of houses and buildings focused on high-quality use and reuse of materials and sustainability ambitions in the field of energy, water, biodiversity, and ecosystems as well. For example, the Bullitt Centerin Seattle, sometimes called the greenest commercial building in the world, is fully circular[5]

afbeelding2 — Photo: James Provost licensed under Creative Commons

The construction sector is not a forerunner in innovation but of great importance with respect to circularity goals. The Amsterdam metropolitan region is planning to build 250,000 new homes deploying circular principles before 2050.

The evaluation of the projects that have been set up in response to the Amsterdam Circular Plan has yielded a number of insights that are important for upscaling:

The most important is making circularity one of the key criteria in granting building permits.

The others are the role of urban planning and the contribution of urban mining, which will be dealt with first.

The role of urban planning

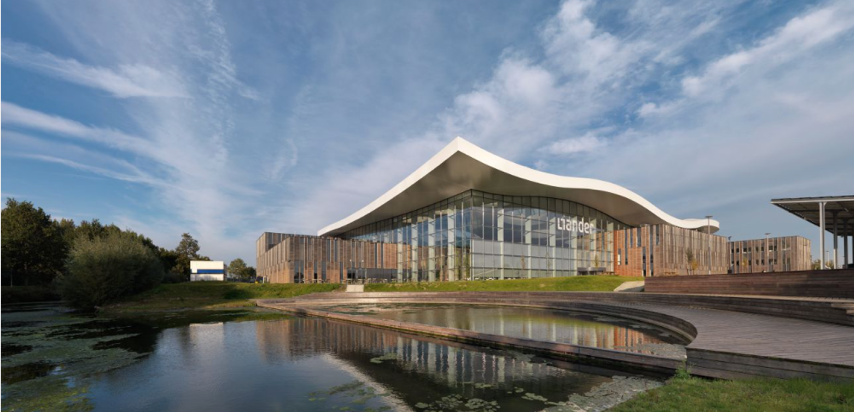

afbeelding3 — Photo: VolkerWessels Vastgoed

The contribution of urban mining

Existing buildings include countless valuable materials. The non-circular way of building in the past impedes securing these materials in a useful form during the demolition process. Deploying dedicated procedures enables the salvation of a large percentage of expensive materials. In this case, we speak of urban mining. Unfortunately, at this time re-used materials are often more expensive than new ones.

Therefore, a circular economy will benefit with a shift from taxes on labor to taxes on raw materials.

Issuing building permits

The municipality of Amsterdam made a leap forwards with respect to issuing building permits to enable circularity[6]. Based on the above-mentioned definition of circular building, five themes are addressed in the assessment of new building projects: Use of materials, water, energy, ecosystems as well as resilience and adaptivity. Each of these themes can be scrutinized from four angles:

– the reduction of the use of materials, water and energy

– the degree of reuse and the way in which reuse is guaranteed.

– the sustainable production and purchase of all necessary materials.

– Sensible management, for example, full registration of all components used.

One of the projects

In recent years, the municipality of Amsterdam has included circular criteria in four tenders: Buiksloterham, Centrumeiland, (residential buildings), the Zuidas (offices) and Sloterdijk (retail and trade). On the Zuidas, the first circular building permit was granted in December 2017. 30% of the final judgment were based on circularity criteria.

afbeelding14png — Crossover – photo Zwartlicht

Need to organize learning

I also would welcome ‘pre-competitive’ cooperation by communities with manufacturers, knowledge institutions, clients and construction partners with the aim to develop circular building.

This involves for instance standardization of the dimensioning of components (windows, frames, floorboards) and the ‘rehabilitation’ of ‘demolished’ components while maintaining the highest possible value. This might be combined with a database in which developers can search for available components.

In Zwolle, another strategy is followed: the municipality, housing corporations and construction companies have formed a Concilium[7], which aims to significantly expand the already planned construction of houses, using circular principles.

Circularity requires closing circles. Collaboration within the supply-chain is one of these.

[1]https://www.rijksoverheid.nl/documenten/rapporten/2016/09/14/bijlage-1-nederland-circulair-in-20

[2]https://www.duurzaambedrijfsleven.nl/circulaire-economie/27945/de-stand-in-het-land-zijn-we-al-een-beetje-circulair

[3]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-0/

[4]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-1/

[5]http://www.bullittcenter.org

[6]https://www.amsterdam.nl/wonen-leefomgeving/duurzaam-amsterdam/publicaties-duurzaam/amsterdam-circulair-1/

[7]https://www.weblogzwolle.nl/nieuws/61325/ambitieus-plan-voor-zwolse-woningmarkt.html

September 10, 2018September 10, 2018

Swap smart city for inclusive city

Last year I wrote 24 short essays about smart cities. They are collected in an e-book, that can be downloaded for free here. What to expect?

Smart city tales

For more than 10 years, ‘smart’ has been a ‘leitmotif’ for tackling urban problems. Companies such as IBM and Cisco, and later also Apple, Amazon and Google all emphasised that technology is the key to their solution. Many city administrators, entrepreneurs and young starters felt attracted to this idea.

But why these blinkers? Anyone who focuses blindly on technology as the solution to contemporary problems will quickly lose sight of the problems themselves. They underrate the problems caused by technology itself and also that for many problems other solutions than technological ones are indispensable.

Some examples of problems that make people worried

Will I come around with my income?
Do I find an affordable house?
Is there still work for the children?
Is the air that I breathe healthy?
Why is my manager so unreasonable?
How secure is the internet?
Who will take care of my mother later?
Can I trust what I eat?
Developments are all going too fast for me
Who is actually in charge
Does a world war will break out?
Does my child like to go to school
Who can I still trust?
Can I still say what I think?
Is my country still my country?
Why do top managers earn so much money?

Core values

Reducing these problems to four categories proved to be helpful:

Threat to basic needs
Pillage of the earth
Injustice
Abuse of technology and data

Each of these categories also refers to core values that in mutual connection will improve the quality of life in a country and the happiness of its inhabitants.

Inclusive growth

Well-being

The satisfaction of our basic needs such as livelihood, housing, education, health care, social contacts and personal growth. There is still a lot to improve here.

Sustainable prosperity

The earth has all the ingredients for a healthy and even prosperous life for us and our offspring. This requires a circular economy based on reuse of resources, the elimination of CO2 emissions, and a less materialistic attitude. The awareness is growing, there is still a lot to do.

Justice

The fact that we live together with others is of vital importance, whether it is a partner, family, the street, the city or the country. The quality of our social life depends on the mutual acceptance of equality and diversity and the balance between give and take. Here too, humanity still has a lot to learn.

Digital connectivity

Just like all forms of technology, computerization is able to support the other core values, but is also a value in itself. ICT adds a new dimension to human creativity and inventiveness and can improve the quality of our lives. However, the virtues of digital connectivity ought not to be appropriated by certain groups. Interoperability, ‘edgeless computing’, ‘blockchain’ and the use of open software standards and open data can contribute to prevent this.

The four core values can be at odds with each other, but also reinforce each other. In the latter case, I refer to inclusiveness.

In each of the 24 short essays the ‘smart city idea’ as a starting point. Sometimes politicizing, for example when it comes to the way the big technology companies take control of society, but also anecdotal, for instance in the smart cities cases like PlanIT Valley near Porto, but also very practical, for example in introductions to circular construction, electricity-generating windows and the storage of energy.

In the final essay I propose to replace the idea smart with inclusive growth. To become more concrete about what that means, I have drawn up a charter that every city or region in the world can use. I already recognize the quest for inclusiveness of a number of cities such as Barcelona, Amsterdam, Copenhagen, Melbourne and Seoul. However, these and all others ones still have a long way to go.
